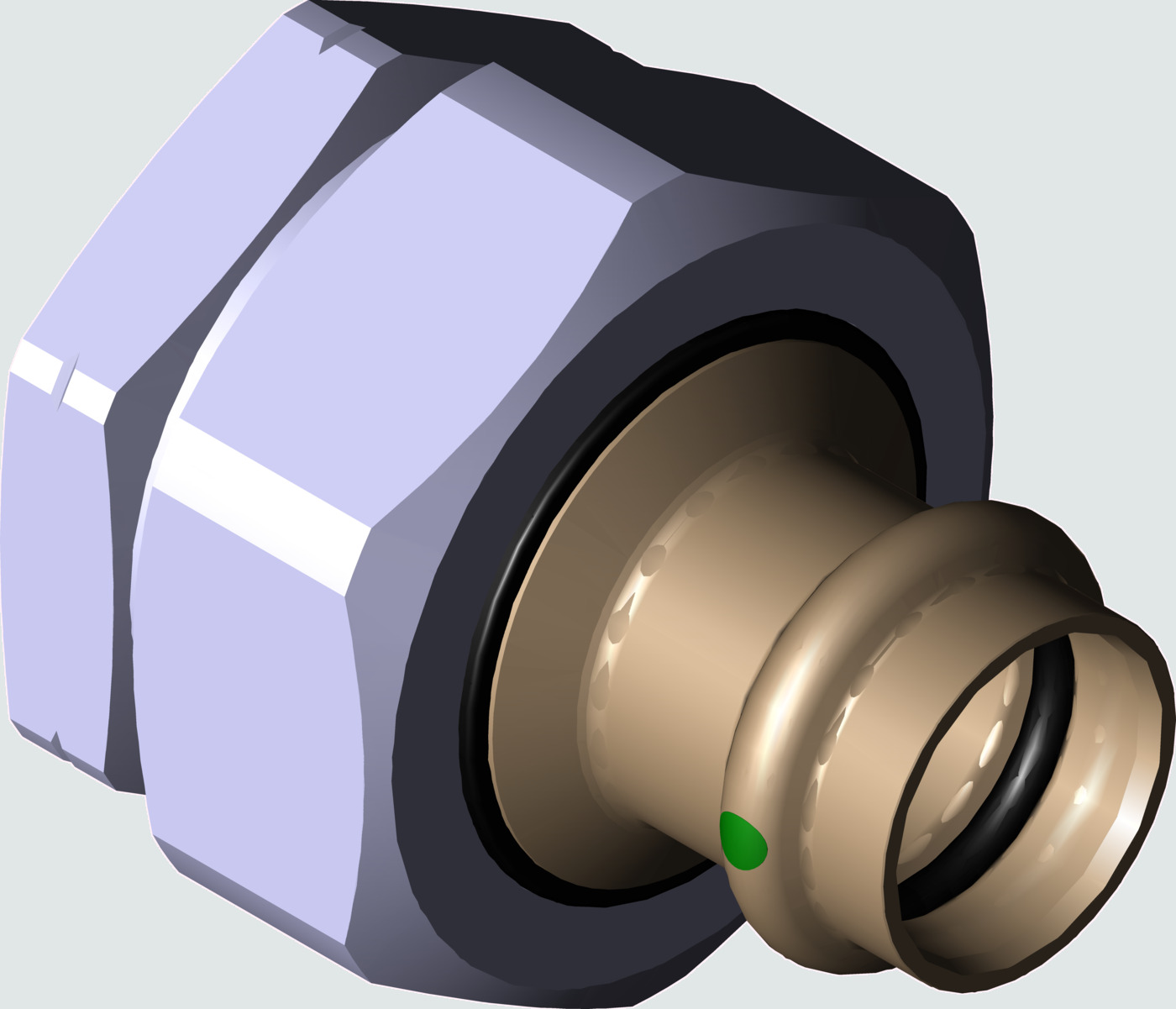

Viega ProPress dielectric union - Model 2967ZL
Viega ProPress dielectric union
Zero Lead
- For transitioning between copper and steel
- Silicium bronze
- Press connection, female pipe thread
Components
Flat gasket EPDM, EPDM sealing elementModel 2967ZL
Articles
| P | FPT | Wt [lb] | DG | Quantity | Part No | amount | |
|---|---|---|---|---|---|---|---|
| ½ | ½ | 0.815 | 8 | 1 | 79155 |
|
|
| ¾ | ¾ | 1.143 | 8 | 1 | 79160 |
|
|
| 1 | 1 | 1.047 | 8 | 1 | 79165 |
|
|
| 1¼ | 1¼ | 1.558 | 8 | 1 | 79170 |
|
|
| 1½ | 1½ | 1.820 | 8 | 1 | 79175 |
|
|
| 2 | 2 | 2.865 | 8 | 1 | 79180 |
|
|
Z dimensions
| P | FPT | A [in] | L1 [in] | L2 [in] | WS1 [in] | WS2 [in] | Part No |
|---|---|---|---|---|---|---|---|
| ½ | ½ | 0.87 | 2.24 | 0.55 | 1.89 | 1.73 | 79155 |
| ¾ | ¾ | 1.1 | 2.56 | 0.55 | 2.17 | 1.97 | 79160 |
| 1 | 1 | 1.02 | 2.56 | 0.67 | 2.17 | 1.97 | 79165 |
| 1¼ | 1¼ | 0.98 | 2.68 | 0.67 | 2.56 | 2.36 | 79170 |
| 1½ | 1½ | 1.02 | 3.11 | 0.67 | 2.76 | 2.56 | 79175 |
| 2 | 2 | 1.26 | 3.54 | 0.71 | 3.23 | 3.15 | 79180 |
